Eighteen radiation shielding products, from a 3 mm tungsten syringe shield to a fully ventilated hot cell. Filter by what the product does, or by how much lead is in it.

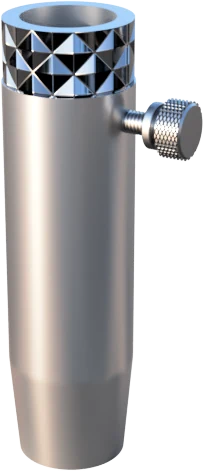

3 mm tungsten
Lightweight shields for 2 cc and 5 cc syringes. Tungsten gives the same attenuation as lead in roughly a third of the wall, so the shield stays light enough for repeated draws.
| Shielding material | Tungsten |
|---|---|
| Shielding thickness | 3 mm |
| Syringe volume | 2 ml / 5 ml |
| Inside dimensions | 8 × 60 mm / 15 × 75 mm (d × l) |
| Weight | 0.066 kg / 0.156 kg |

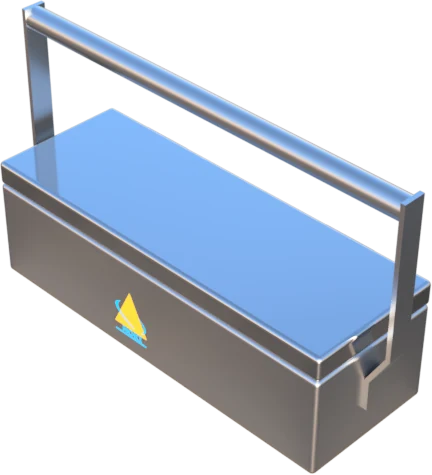

3 or 6 mm lead
Carries a filled syringe between the dispensing bench and the patient. The wide base lets a technologist set it down one-handed without it tipping.
| Syringe capacity | 2 ml to 10 ml |
|---|---|
| Shielding thickness | 3 mm for SPECT, 6 mm for PET |
| Finishing material | Stainless steel cover |
| Outer dimensions | 40 × 150 mm |
| Inner dimensions | 20 × 140 mm |
| Weight | Approx. 1.8 kg |

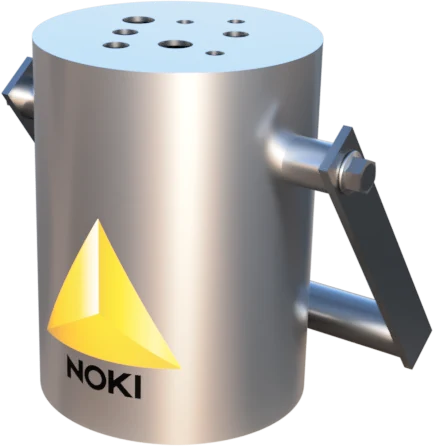

12 mm lead
Moves a full morning's doses in one trip. Holds 7 to 10 syringes from 1 cc to 10 cc in a stainless body with a side-mounted carry handle.
| Capacity | 7 to 10 syringes |
|---|---|
| Syringe sizes | 2 cc, 3 cc, 5 cc, 10 cc |
| Shielding | 12 mm lead |
| Finishing material | Stainless steel |
| Dimensions | 150 × 200 mm (diameter × height) |
3 to 20 mm lead
A shielded case for carrying syringes containing sources between rooms. The hinged lid takes a lockable snap-latch, and the fixed handle keeps the load square.
| Finishing material | 304 stainless steel, mirror finish |
|---|---|
| Lead lining | 3 / 6 / 12 / 20 mm |
| Outer dimensions | 260 × 93 × 167 mm |
| Inner dimensions | 213 × 40 × 38 mm |
| Weight | 20 kg with 20 mm lead |

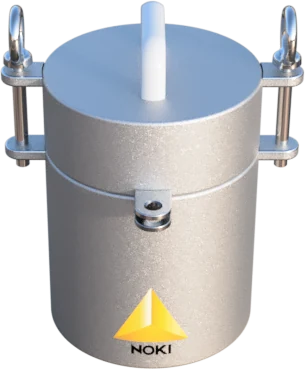

25 mm lead
The standard pig for storing and shipping a radioisotope vial. Epoxy coated outside, and available in other lead thicknesses on request.
| Shielding thickness | 25 mm lead |
|---|---|
| Finishing material | Epoxy coating |
| Standard colour | White |
| Outer dimensions | 120 × 94 mm |
| Inner dimensions | 70 × 44 mm |
| Weight | Approx. 7.2 kg |
6 or 30 mm lead
An anodised aluminium body around a lead core, with a lead glass window so you can read the vial label and meniscus without opening it. The lid twists off against a magnetic catch.
| Finishing material | Anodised aluminium |
|---|---|
| Shielding material | Lead |
| Shielding thickness | 6 mm / 30 mm |
| Outside dimensions | 50 × 100 mm / 86 × 116 mm (d × h) |
| Inside dimensions | 28 × 70 mm / 25 × 66 mm (d × h) |
| Weight | 1.4 kg / 6.856 kg |
40 mm lead
A modular safe for source storage. Units stack and connect to each other, so a department can add capacity later without replacing what it already owns.
| Finishing material | Stainless steel exterior |
|---|---|
| Shielding material | Lead |
| Shielding thickness | 40 mm |
| Outside dimensions | 288 × 278 × 288 mm (w × d × h) |
| Weight | 450 kg |
45 mm lead
Two tapered openings take two tubes without leaving a straight path for radiation to escape. The lid pulls down onto the body with two large screws.
| Finishing material | Stainless steel exterior |
|---|---|
| Shielding material | Lead |
| Shielding thickness | 45 mm |
| Outside dimensions | 130 × 160 mm (d × h) |
| Inside dimensions | 30 × 56 mm (d × h) |
| Weight | 23 kg |
50 mm lead
Storage and containment for the SPECT and PET sources kept on site. The door swings clear of the aperture so a pig can be lifted straight in and out.
| Finishing material | Epoxy coated lead |
|---|---|
| Shielding material | Lead |
| Shielding thickness | 50 mm |
| Outside dimensions | 235 × 235 × 300 mm (w × d × h) |
| Inside dimensions | 125 × 125 × 200 mm (w × d × h) |
60 mm lead
A stainless exterior that wipes down properly after a spill, over 60 mm of lead. Two padlock points on the closure for departments that need controlled access logged.
| Finishing material | Stainless steel |
|---|---|
| Shielding material | Lead |
| Shielding thickness | 60 mm |
| Outside dimensions | 188 × 250 mm (d × h) |
| Inside dimensions | 48 × 120 mm (d × h) |
| Weight | 60 kg |
3 mm lead
An 18 litre bin for hot lab consumables. Stainless outside, epoxy coated lead inside, with a counterweighted lid that stays open while you load it.
| Capacity | 18 litres |
|---|---|
| Finishing material | Stainless steel exterior, epoxy coated lead interior |
| Shielding material | 3 mm lead |
| Outside dimensions | 210 × 210 × 535 mm (w × d × h) |
| Inside dimensions | 200 × 200 × 530 mm (w × d × h) |
| Weight | 37 kg |
6 mm lead
The same 18 litre footprint with twice the lead and a pedal, so contaminated gloves never touch the lid.
| Capacity | 18 litres |
|---|---|
| Opening | Hands-free foot pedal |
| Finishing material | Stainless steel exterior, painted lead interior |
| Shielding material | Lead |
| Shielding thickness | 6 mm |
| Outside dimensions | 210 × 210 × 535 mm (w × d × h) |
| Inside dimensions | 197 × 197 × 527 mm |
35 to 40 mm lead
Lead on all six sides for holding radioactive waste generated in the hot lab while it decays. The hydraulic mechanism carries the lid through a full 90 degrees and holds it there.
| Shielding thickness | 35 / 40 mm |
|---|---|
| Lid opening | 90 degrees, hydraulic |
| Finishing material | Mirror finish stainless steel |
| Inside dimensions | 300 × 300 × 300 mm (w × d × h) |
| Weight | 350 kg |
| Mobility | Castor mounted |

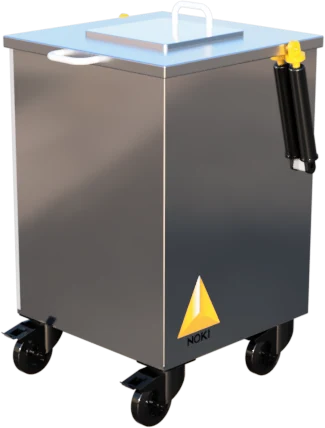

45 mm lead
Shielded waste storage on castors, stainless steel inside and out so both surfaces survive decontamination.
| Finishing material | Stainless steel exterior and interior |
|---|---|
| Shielding material | Lead |
| Shielding thickness | 45 mm |
| Mobility | Four castors, two braked |
70 mm lead
A 70 mm container on a cart for moving high-energy sources across a department. The handlebar and front wheel both swivel, and lifting eyes let a hoist take the container off the deck.
| Shielding thickness | 70 mm |
|---|---|
| Outside dimensions | 600 × 270 × 600 mm |
| Inside dimensions, lead container | 60 × 127 mm (d × h) |
| Weight | 130 kg |
| Handling | Swivel handlebar, swivel front wheel, lifting eyes |
5 mm lead
An enclosed working volume with an extractable L block inside it, so dispensing happens behind two barriers instead of one. The 15 mm lead glass window runs the width of the opening.
| Finishing material | Stainless steel |
|---|---|
| Shielding material | Lead |
| Shielding thickness | 5 mm |
| Viewing window | 200 × 240 × 15 mm lead glass, 4.8 g/cm³ |
| Outside dimensions | 600 × 420 × 480 mm (w × d × h) |
| Inside dimensions | 574 × 394 × 407 mm (w × d × h) |
| Weight | 90 kg |

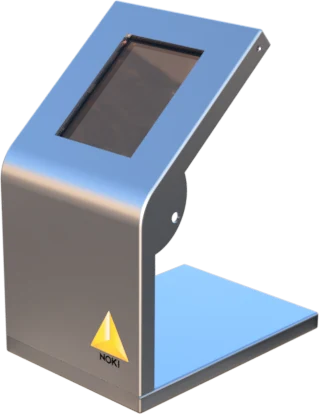

70 mm lead
A benchtop L block with a lead glass window, sized for high-energy work such as PET. It stands between the technologist's torso and the vial while both hands stay free.
| Shielding thickness | 70 mm |
|---|---|
| Viewing window | Lead glass |
| Outside dimensions | 600 × 270 × 600 mm |
| Weight | 130 kg |
Built to your shielding calculation
A fully enclosed, ventilated cell for handling and preparing radioactive materials, built around the synthesis work a radiopharmacy actually runs.
| Shielding | Thick lead, specified per isotope and activity |
|---|---|
| Ventilation | HEPA filtered, negative pressure |
| Monitoring | Real-time process oversight at the control interface |
| Workspace | Configured for the synthesis routes you run |
Nothing matches that selection. Choose Everything to reset.
We will come back with the shielding thickness, the product, and a price.
